DiGiCo Consoles Are at the Heart of Boston College’s Atlantic Coast Conference Broadcast Operations

Di Gi Co Boston College 4

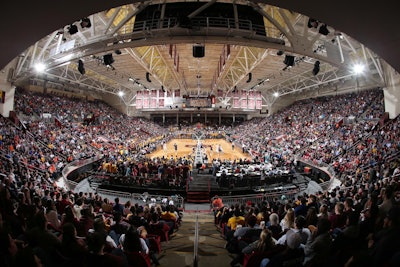

BOSTON, Massachusetts – April 2023 – As part of its ongoing upgrade process Boston College recently installed two DiGiCo SD10B consoles. Situated in the college’s central media suite located between the school’s 8,600-seat Conte Forum basketball/hockey arena and 44,500-seat Alumni Stadium football venue, the SD10B desks, which replaced two earlier-installed SD9B consoles, are now the main mixing and processing platforms for broadcasts of sports from those venues over the Atlantic Coast Conference (ACC) Network, a broadcast channel airing hundreds of league sporting events each year from its member schools.

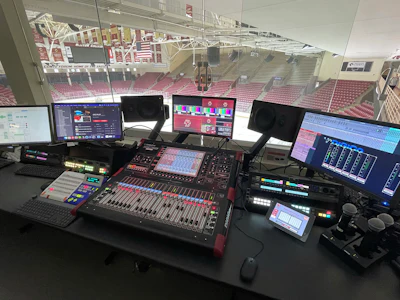

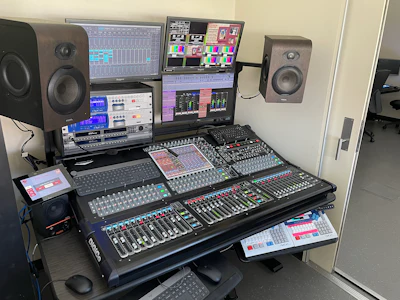

Each 37-fader SD10B is the main console for each of the two matching main control rooms of the media suite. One of the earlier-installed 24-fader SD9B consoles is now located in a separate control room, locally known as “The Eagles’ Nest,” a reference to BC’s mascot, Baldwin the Eagle. This third control room is most typically used to produce the in-game experience in both venues, Alumni Stadium and Conte Forum. Here, content is produced for the Daktronics videoboards and for the PA systems, which were manufactured by local companies Fulcrum Acoustics for Alumni Stadium and Bose for Conte Forum.

“Despite having a smaller sized audio console, this control room is almost as capable as the other two, with only a few key differences, such as the audio console is not in a separate mixing room,” says BC Broadcast Engineer Adam Ferguson. “The Eagles’ Nest control room can still be utilized to produce broadcasts, and has actually been used to produce both the broadcast and the in-venue show simultaneously.” The remaining SD9B is used as a rolling “hot” spare as needed, he adds.

Di Gi Co Boston College 2

In addition, there are two DiGiCo MADI-equipped MQ-Racks for the SD10Bs and a D-Rack for the SD9B. The media suite and its control rooms were designed by systems design firm Idibri, a Salas O’Brien company, and installed by systems integrator Diversified. Boston College’s technical team chose the DiGiCo desks from a very short list of consoles recommended by the ACC Network, which is partnered with broadcast-sports powerhouse ESPN.

The ACC Network is unique in broadcast sports: an association of 11 colleges and universities linked into a broadcast network that pool and share their individual media facilities. Founded in 2019 as part of $1 billion, 12-year media-rights deal with ESPN, member schools carved out space in current structures, and in some cases built new ones, to create and house state-of-the-art media facilities featuring multiple control rooms with display-covered walls and studios with green-screen backdrops. Designs varied, with the only basic collective mission requirement to ensure the ability to handle a linear broadcast.

As part of that undertaking, Boston College was asked to choose between two audio console vendors. That choice was clear, according to Ferguson: DiGiCo. “We were basically tasked with building remote-broadcast trucks without wheels,” he says. “The idea behind the ACC Network was that instead of bringing huge numbers of third-party broadcast trucks to all of the games, the broadcasts could be handled locally, utilizing staff employed by the universities, and broadcast nationally. It’s really been an incredible project and a seismic shift in the broadcast-sports industry.” Di Gi Co Boston College 1

The DiGiCo consoles are central to that success. All three desks are networked on an Optocore loop, enabling seamless interoperability between control rooms, venues, and the larger ACC network. Ferguson says “There is a considerable amount of format conversion done within the media suite’s infrastructure; for instance, the DiGiCo consoles are on a native Optocore network over single-mode fiber while the router natively uses MADI, and there are a number of Dante-enabled devices in between. That’s due to a number of factors, such as the recommendation from the ACC Network to use Evertz baseband routers, which natively use SDI and MADI.

“On the other hand, the convenience of Dante-enabled network audio products is something we like to take advantage of in our workflow. With Dante devices like RTS intercom belt-packs, Studio Technology announcer consoles and Shure ANI22-XLR preamps, we are able to provide all the necessary power and signal to portable devices over just one Ethernet cable. Anywhere that we can connect a device to our Dante network via Ethernet, these smart network devices will power themselves up and automatically remember all their designated routes, both inputs and outputs. This greatly simplifies our workflow, significantly decreases the number of cables we need to connect to devices that travel frequently, and it has been instrumental for extending our connectivity across several remote campuses over fiber.”

With all of the necessary conversion between MADI, Dante, and Optocore, BC also relies on DiGiCo’s Orange Boxes, which, when equipped with a DMI-Opto card, become routable I/O at all of the consoles on the Optocore loop.

After the initial ACC Network control room build-out in the summer of 2018, BC has its own network of terrestrial fiber for ACC Network Broadcast Operations, which spans several miles and connects the Alumni/Conte complex, the baseball/softball fields at the Brighton campus, the soccer and field hockey fields at the Law School campus in Newton Center, and recently, the new Connell Recreation Center, which is where volleyball and fencing coverage moved to starting this year.

“We had some flexibility when it came to choosing the audio consoles for our operation, and the SD desks were really the best choice,” he says. “We can manage multiple games and events, and interface with the rest of the ACC Network seamlessly. I was already familiar with DiGiCo’s SD9B console before this, and I knew that their flexible SD-Range consoles and their broadcast software would work perfectly for our complex demands. It was an easy decision for us to continue using DiGiCo consoles.”

That’s important, because the ACC Network today airs 450 live events annually alongside its original programming, and the event number hits 1,300 when the digital-only companion ACC Network Extra is factored in. The ACC Network control rooms at Boston College alone have produced over 120 events per year since their completion in 2018, often times with multiple events and control rooms running concurrently. That requires the kind of flexible routing the SD consoles excel at.

“Our audio consoles were previously only connected via MADI ins and outs through our broadcast router,” Ferguson explains. “Now, we still have discrete MADI connections to and from the broadcast router to each console, but we also have an audio console network, which is something far more powerful. Now all of our audio operators have even more direct access to almost every audio channel in our complex system, which drastically reduces the amount of changes that need to be made from our broadcast router. This gives the audio operators a lot more flexibility to route audio and ultimately to solve problems themselves, from their audio console, where they would previously have to coordinate all routing changes with the router [broadcast] engineer.

“This is a large part of why our in-house control rooms have been such a major change to the industry, because we can produce multiple broadcasts simultaneously from our in-house control rooms and we have been able to dramatically increase the number of sports being broadcast at BC,” he continues. “This is a transformative shift that includes covering many more games that previously could not have justified the expense of a broadcast truck. Because we have permanent infrastructure in place, we can produce broadcasts for a fraction of that cost and produce a lot more games than ever before.”

There are a lot of growing platforms to stream the content BC produces over the internet, like ACC Network Extra, instead of being limited to when or if a linear TV channel can accommodate it into its schedule. “With live streaming available, we no longer necessarily need to find a time that works for TV in order to go live,” Ferguson adds. “A growing number of people are signing up for subscription services that allow them to stream whatever games they want, regardless of whether they make it to linear TV. This is creating a growing demand for more niche sporting events that might have smaller audience sizes relative to traditional TV, but with the growing investment in permanent broadcast infrastructure coming from the TV networks, the athletic conferences, and the schools themselves, the sporting industry is producing much more content than ever before, and at a far lower cost. Producing this much content is a complex and ongoing challenge, and DiGiCo consoles are a critical component of the infrastructure we’ve put together to accomplish all of this at Boston College.”

For more details on Boston College Athletics and the Atlantic Coast Conference, visit www.bceagles.com and www.theacc.com.

About DiGiCo

DiGiCo is a UK-based manufacturer of some of the world’s most popular, successful and groundbreaking digital mixing consoles for the live, theatre, broadcast and postproduction industries and is exclusively distributed in the US by Group One Ltd. of Farmingdale, New York. For more information, go to www.DiGiCo.biz.
